Platinum Coated Titatium Mesh Electrode for Hydrogen Rich Water Ionizer
The water ionizer adopts advanced water micro-electrolysis technology to electrolyze water into hydrogen(H2) and oxygen(O2), which helps turn ordinary drinking water into hydrogen alkaline water. During the hydrogen production process, the material quality of the electrodes in the cup base is the key to ensure the efficiency of the electrochemical reaction. With better conductivity and durability, our pure platinum coated titanium mesh promotes the stable combination of hydrogen and water with high hydrogen concentrations. The end result is a hydrogen alkaline water that is more stable.
Additional information
| Application | Hydrogen Production |
|---|
Description
Description
Quality Substrate Material
Our electrodes are manufactured from high-tensile titanium, which meets commercially Grade I/II standards.
| wdt_ID | wdt_created_by | wdt_created_at | wdt_last_edited_by | wdt_last_edited_at | Element | Grade I | Grade II |
|---|---|---|---|---|---|---|---|
| 1 | jenningsanodesusa | 01/02/2025 12:26 | jenningsanodesusa | 01/02/2025 12:26 | Iron (Fe) | 0.20% max. | 0.30% max. |
| 2 | jenningsanodesusa | 01/02/2025 12:27 | jenningsanodesusa | 01/02/2025 12:27 | Carbon (C) | 0.08% max. | 0.08% max. |
| 3 | jenningsanodesusa | 01/02/2025 12:29 | jenningsanodesusa | 01/02/2025 12:29 | Nitrogen (N) | 0.03% max. | 0.03% max. |
| 4 | jenningsanodesusa | 01/02/2025 12:29 | jenningsanodesusa | 01/02/2025 12:29 | Hydrogen (H) | 0.015% max. | 0.015% max. |
| 5 | jenningsanodesusa | 01/02/2025 12:29 | jenningsanodesusa | 01/02/2025 12:29 | Oxygen (O) | 0.18% max. | 0.25% max. |
| 6 | jenningsanodesusa | 01/02/2025 12:30 | jenningsanodesusa | 01/02/2025 12:30 | Titanium (Ti) | Remainder | Remainder |
Long Service Coating
Using state-of-the-art technology, the titanium base is taken to a high temperature ( ≥1200 °C) in a vacuum sintering furnace ensuring total adhesion of the coating. Thus, the coating consumption rate is extremely low and uniform, measured in milligrams per ampere-year.
| wdt_ID | wdt_created_by | wdt_created_at | wdt_last_edited_by | wdt_last_edited_at | Technical Parameters | Performance |
|---|---|---|---|---|---|---|
| 1 | jenningsanodesusa | 01/02/2025 12:35 | jenningsanodesusa | 01/02/2025 12:35 | Coating Composition | Platinum (Pt) |
| 2 | jenningsanodesusa | 01/02/2025 12:36 | jenningsanodesusa | 01/02/2025 14:38 | Coating Thickness | 1~5 µm |
| 3 | jenningsanodesusa | 01/02/2025 12:37 | jenningsanodesusa | 01/02/2025 12:37 | Operating Voltage | ≤ 24V |
| 4 | jenningsanodesusa | 01/02/2025 12:37 | jenningsanodesusa | 01/02/2025 12:37 | Current Density | ≤7500 A/m² |
| 5 | jenningsanodesusa | 01/02/2025 12:37 | jenningsanodesusa | 01/02/2025 12:37 | pH Range | 1~12 |
| 6 | jenningsanodesusa | 01/02/2025 12:37 | jenningsanodesusa | 01/02/2025 12:37 | Working Temperature | < 60 °C |

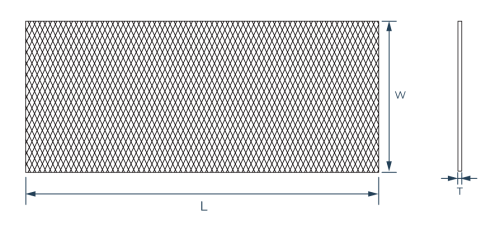

Parameters
| Item No. | Width | Length | Diamond Dimensions | Mesh Thickness |
| JA-PTM-R50S | 2.0” (50 mm) | 3.15” (80 mm) | 0.07” x 0.13” (1.7x 3.3 mm) | 0.04” (1 mm) |
| JA-PTM-R50M | 2.0” (50 mm) | 3.9” (100 mm) | 0.07” x 0.13” (1.7x 3.3 mm) | 0.04” (1 mm) |
| JA-PTM-R50L | 2.0” (50 mm) | 5.9” (150 mm) | 0.07” x 0.13” (1.7x 3.3 mm) | 0.04” (1 mm) |
| JA-PTM-R60S | 2.4” (60 mm) | 3.15” (80 mm) | 0.07” x 0.13” (1.7x 3.3 mm) | 0.04” (1 mm) |
| JA-PTM-R60M | 2.4” (60 mm) | 3.9” (100 mm) | 0.07” x 0.13” (1.7x 3.3 mm) | 0.04” (1 mm) |
| JA-PTM-R60L | 2.4” (60 mm) | 5.9” (150 mm) | 0.07” x 0.13” (1.7x 3.3 mm) | 0.04” (1 mm) |
Testing Details
We employ ISO 9001:2015 quality management system and rigorous internal testing standards to ensure the optimum lifespan and performance of our electrodes. Each electrode is labelled with a unique serial number for quality tracking.
Packaging Information
Remarks: Custom packing is available upon request.
We have strict packing protocols to guarantee safe delivery of our products. Clear shipping marks and documentation make delivery acceptance straightforward and simple.
Shipping Documents:
- Proforma invoice
- Packing list
- Testing reports (Chemical Composition, Electrochemical Properties Test, Certificate of Compliance)
- Certificate of origin (upon request)
