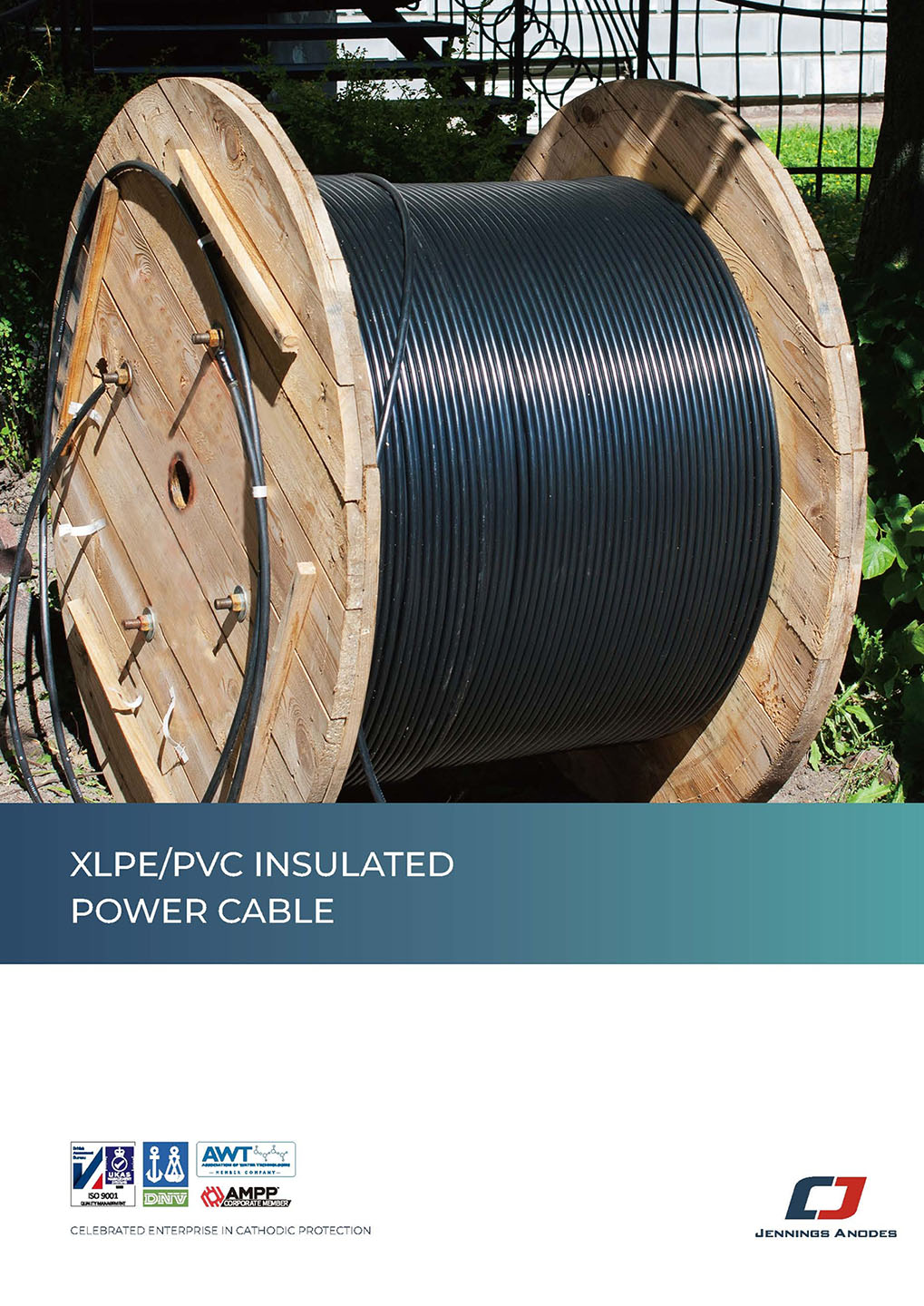

XLPE/PVC Insulated Power Cable
XLPE/PVC insulated power cable is the most common used cable in cathodic protection systems. It is composed of copper core covered with XLPE Insulation layer which has excellent chemical resistance and low temperature tolerance.The jacket layer is made of PVC material which enhance its dielectric strength, waterproofness and flame retardancy .
Additional information
| Rated Voltage Uo/U | 0.6/1 kV |
|---|---|
| Highest System Voltage | 1.2 kV |
| Maximum Conductor Temperature | 90 °C (Normal) |
| Minimum Ambient Temperature (After Installation) | 0 °C |
| Maximum Permissible Tensile Load | 50 N/mm² |
| Short-circuit Temperature | 250 ºC |
| Minimum Bending Radius | Single Core: 20×OD |
| Silicone Free | Yes |
Description
Description
The XLPE/PVC insulated power cable, widely employed in cathodic protection systems, is comprised of a copper core, which is covered with an insulation layer made of cross-linked polyethylene (XLPE). This XLPE insulation layer exhibits excellent chemical resistance and low-temperature tolerance. Additionally, the jacket layer is made of PVC material which enhances its dielectric strength, waterproofness and flame retardancy.
Application
Our cable, primarily intended for use as a main power supply, can be installed in a wide range of environments. With XLPE insulation, it boasts flame retardancy and corrosion resistance, making it well-suited for installations rated at 0.6/1 kV. It is an excellent choice for distribution networks, power stations, and substations. Additionally, it is versatile enough for fixed installation in power lines and can be laid in various settings, including industrial areas, indoors, underground, and outdoors.
Parameters
| wdt_ID | wdt_created_by | wdt_created_at | wdt_last_edited_by | wdt_last_edited_at | Cross Section | Strand Qty | Conductor Diameter | Insulation Thickness | Sheath Thickness | Overall Diameter | D.C. Resistance (@ 20°C) | Current Rating | Net Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | jenningsanodesusa | 19/12/2024 02:05 | marketingda858414ef | 28/03/2025 18:20 | 6 | 7 | 41 mils (1.04 mm) | 28 mils (0.7 mm) | 55 mils (1.4 mm) | 0.06” (7.3 mm) | 3.08 Ω/km | 30 | 1.04 oz/ft (96 g/m) |
| 2 | jenningsanodesusa | 19/12/2024 02:05 | marketingda858414ef | 28/03/2025 18:20 | 10 | 7 | 53 mils (1.35 mm) | 28 mils (0.7 mm) | 55 mils (1.4 mm) | 0.29” (8.2 mm) | 1.83 Ω/km | 6 | 1.53 oz/ft (142 g/m) |
| 3 | jenningsanodesusa | 19/12/2024 03:41 | marketingda858414ef | 28/03/2025 18:20 | 16 | 7 | 67 mils (1.7 mm) | 28 mils (0.7 mm) | 55 mils (1.4 mm) | 0.36” (9.3 mm) | 1.15 Ω/km | 56 | 2.21 oz/ft (205 g/m) |
| 4 | jenningsanodesusa | 19/12/2024 03:42 | marketingda858414ef | 28/03/2025 18:30 | 25 | 7 | 84 mils (2.14 mm) | 35 mils (0.9 mm) | 55 mils (1.4 mm) | 0.43” (11 mm) | 0.727 Ω/km | 73 | 3.22 oz/ft (303 g/m) |
| 5 | jenningsanodesusa | 19/12/2024 03:43 | marketingda858414ef | 28/03/2025 18:21 | 35 | 7 | 99 mils (2.52 mm) | 35 mils (0.9 mm) | 55 mils (1.4 mm) | 0.48” (12.1 mm) | 0.524 Ω/km | 90 | 4.29 oz/ft (402 g/m) |
| 6 | jenningsanodesusa | 19/12/2024 03:44 | marketingda858414ef | 28/03/2025 18:21 | 50 | 7 | 117 mils (2.98 mm) | 39 mils (1 mm) | 55 mils (1.4 mm) | 0.51” (13.1 mm) | 0.387 Ω/km | 145 | 5.87 oz/ft (547 g/m) |
| 7 | jenningsanodesusa | 19/12/2024 03:44 | marketingda858414ef | 28/03/2025 18:21 | 70 | 14 | 102 mils (2.58 mm) | 43 mils (1.1 mm) | 55 mils (1.4 mm) | 0.59” (15.1 mm) | 0.268 Ω/km | 185 | 8.04 oz/ft (746 g/m) |
