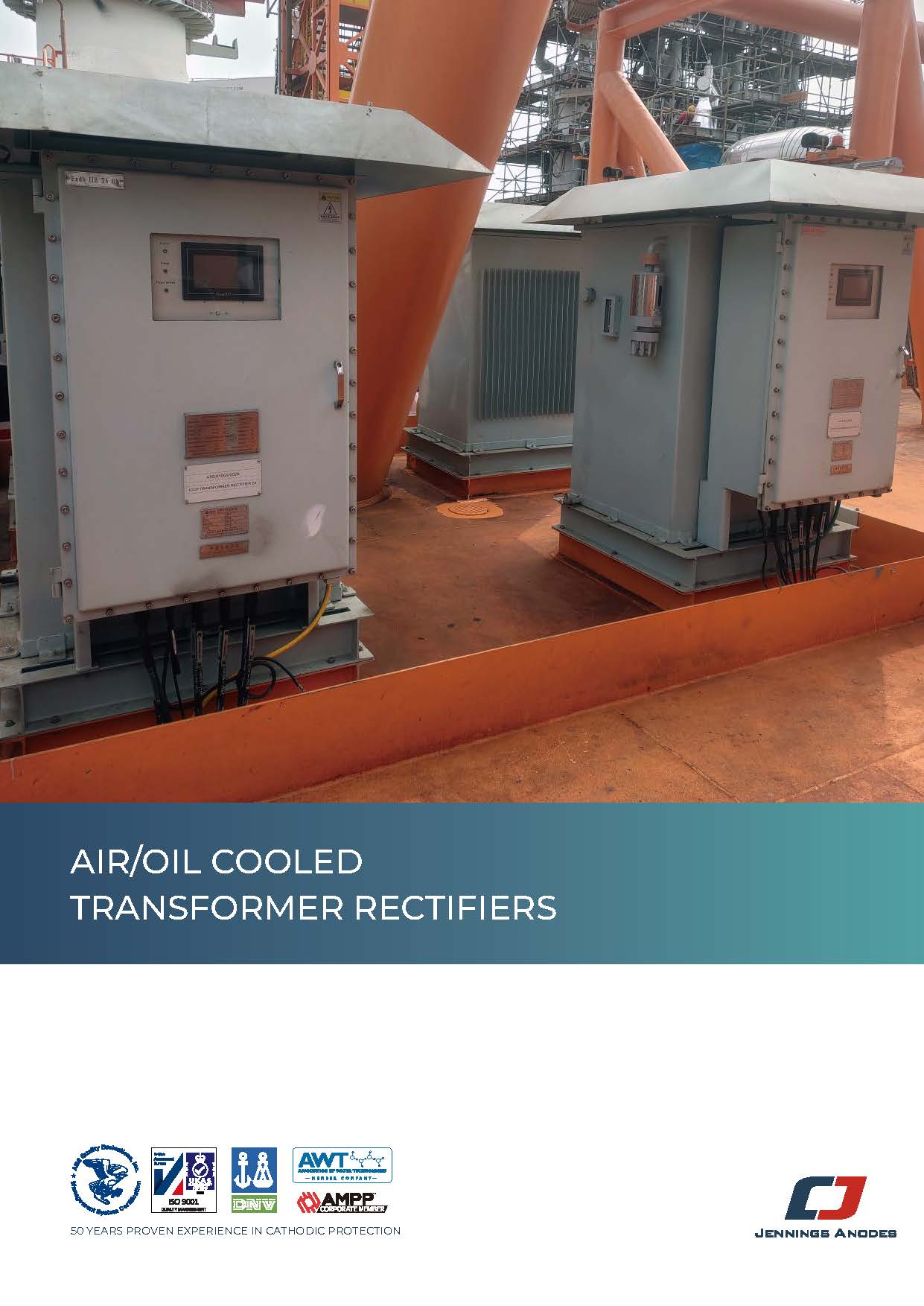

Air Cooled Transformer Rectifier (Stainless Steel Enclosure)

This air-cooled transformer rectifier is a kind of automatic controlled transformer, used as the DC power for impressed current cathodic protection. With the advantages of compact structure and light weight, it is ideal for smaller installations in cleaner environments. Typically, it is widely used for the cathodic protection of long pipelines, tank interior bottom, buried or submerged steel structure, etc.



  • Rectifier Module: Thyristor / High Frequency Switch / Silicon Rectifier
  • Mode Switch: Auto / Manual(25-step outputs)
  • Touch Screen Panel
  • LED Digital Display
  • Timing Interruption Program
  • Surge Protection
  • Lightning Protection (optional)
  • Sun Protection (optional)
  • Data Remote Transmission and Control (optional)
  • GPS Synchronization Current Interrupter (optional)


Main Technical Parameters

AC Input

Single-phase: 220±10%V, 50±5%Hz, Three-phase: 380±10%V, 50±5%Hz

DC Output

100V, 50A

Insulation Resistance


Control Range


Control Accuracy



<80 dB

IP Level

IP44, IP66

Design Life

30 years
