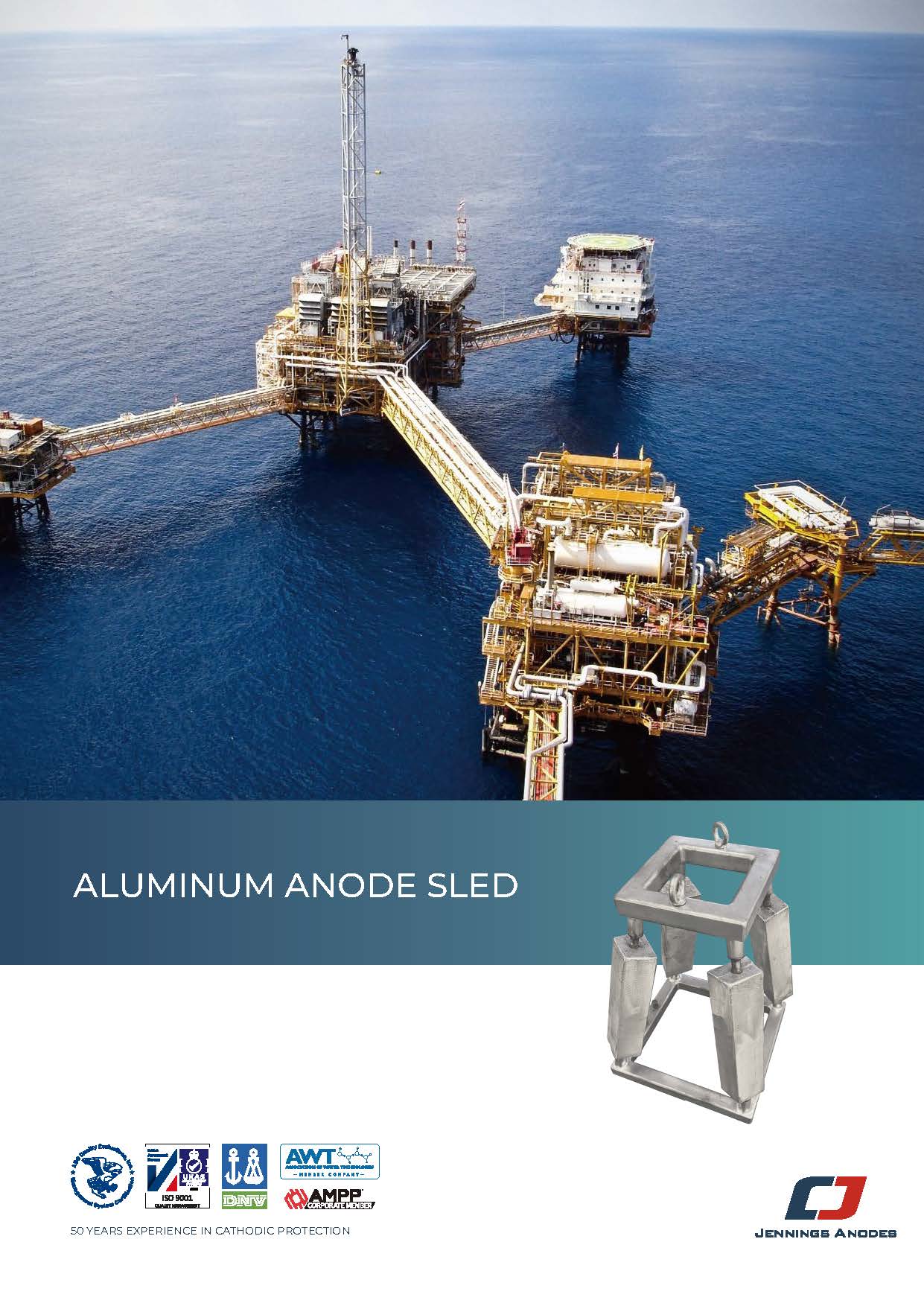

Aluminum Anode Sled

This pyramid aluminum anode is designed for replacing depleted anodes on mature offshore assets. It can be quickly installed by lowering it onto the sea floor. Compared to underwater welding or other methods of attachment, its speedy installation is incredibly cost-effective . Thus, our anode sled is ideal for anode retrofit projects of subsea equipment and platforms.

Category:

Tags:

, , , , ,

Quality Substrate Material
Casted in low-iron, high-purity alloys, our anode sled is designed as per the standard of ISO, NACE, DNV.

Element GALVALUM III DNV-RP-B401-2011 GS EP COR 201
Zinc (Zn) 2.0% ~ 6.0% 2.5% ~ 5.75% 4.75% ~ 5.75%
Indium (In) 0.01% ~ 0.02% 0.015% ~ 0.04% 0.015% ~ 0.02%
Silicon (Si) 0.08% ~ 0.2% 0.12% max. 0.06% ~ 0.12%
Iron (Fe) 0.13% max. 0.09% max. 0.12% max.
Copper (Cu) 0.006% max. 0.003% max. 0.003% max.
Cadmium (Cd) 0.002% max. 0.002% max.
Total Impurities 0.1% max. 0.1% max. 0.1% max.
Aluminum (Al) Remainder Remainder Remainder

Low Driving Voltage
This aluminium anode sled provides a stable performance in seawater and electrolytes containing chloride ions as its operating potential is kept between -1.05 to -1.10 volts relative to saturated calomel electrode(SCE).

Technical Measurement Performance
Open Circuit Voltage (-V) 1.10 min.
Closed Circuit Voltage (-V) 1.05 min.
Current Capacity 1135 A.h/lbs (2500 A.h/kg)
Current Efficiency 90% min.
Consumption Rate 7.6 lbs/A·y (3.4 kg/A·y)

Main Technical Parameters

Substrate

Aluminium

Environment

Brackish Water, Seawater

Application

Offshore Platform

Testing

We employ ISO 9001:2015 quality management system and rigorous internal testing standards to ensure the optimum lifespan and performance of our anodes. Each anode is labelled with a unique serial number for quality tracking.

Testing Details Chemical Composition Electrochemical Performance Physical Properties
Testing Standard DNV-RP-B401 NACE TM0190 Foundry ITP
Testing Content Chemical Analysis Circuit Potential / Current Capacity / Current Efficiency / Electrical Resistance Dimension & Weight / Surface Finish / Steel Insert
Equipments Optical Emission Spectrometer OBLF QSN 750 Electrochemical Analyzer EPI 200 Calibrated Digital Measuring Devices
